Cube20S, modular fieldbus system | Murrelektronik

Cube20S

Modular Fieldbus System for the Cabinet

Small, speedy, safe

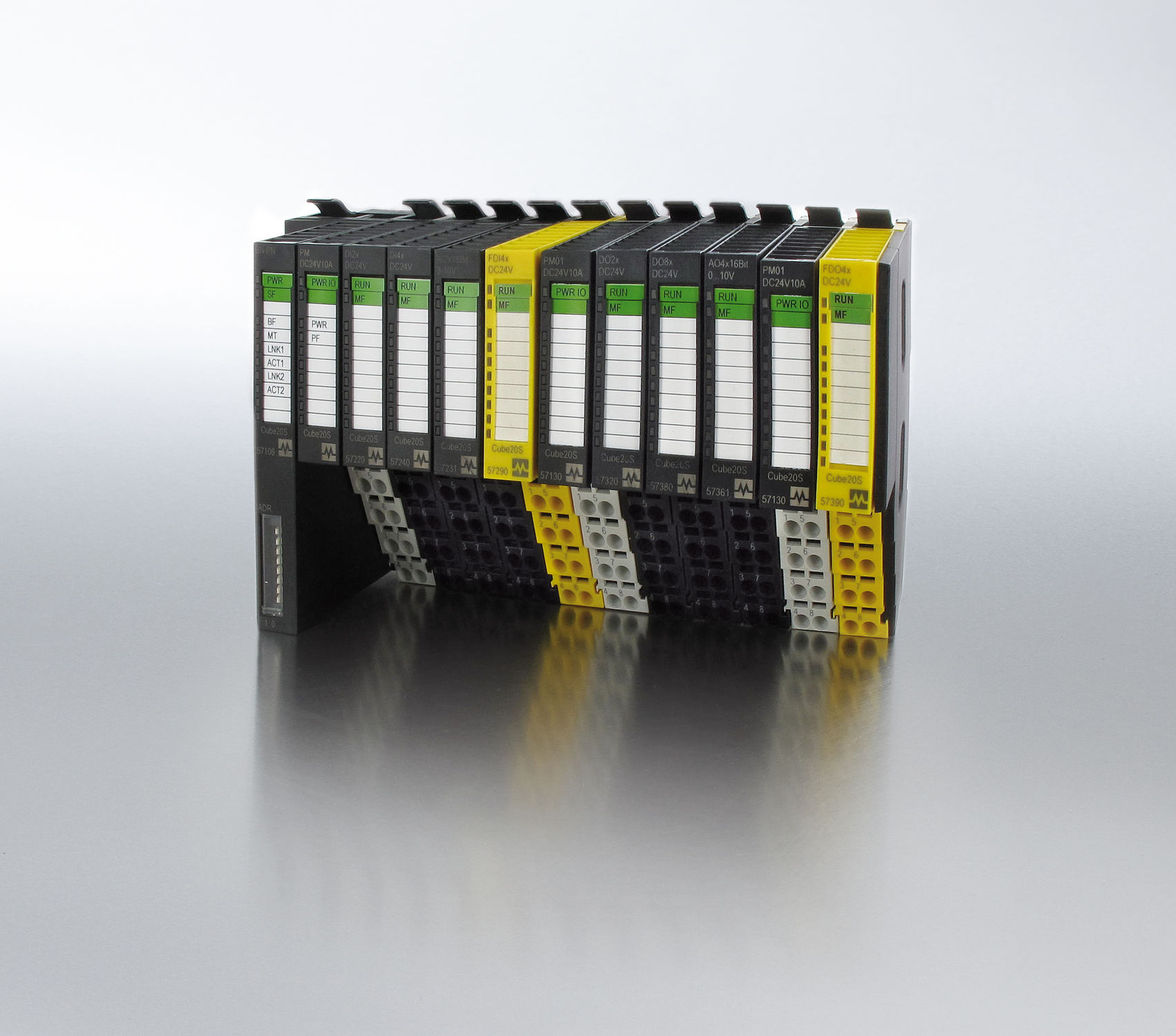

Murrelektronik's modular Cube20S I/O system expands the field-tested Cube family with another IP20 product line with many features. The compact modules are only 12.9 millimeter wide. Thanks to their modular design they can be easily, quickly and individually connected – the integrated  backplane bus connects the modules to power and data.

Modular system with safe inputs and outputs

  • Individual, modular design
  • Space saving spring clamp terminals
  • Safety modules for safe inputs and outputs with the highest possible protection (up to PLe)
  • Status LEDs with clear channel assignment
  • Response time up to 20 μs
  • Highly modular with 2-, 4-, and 8-channel modules
  • Up to 64 modules per bus node
  • Many module types
  • Configuration diagram on the modules
